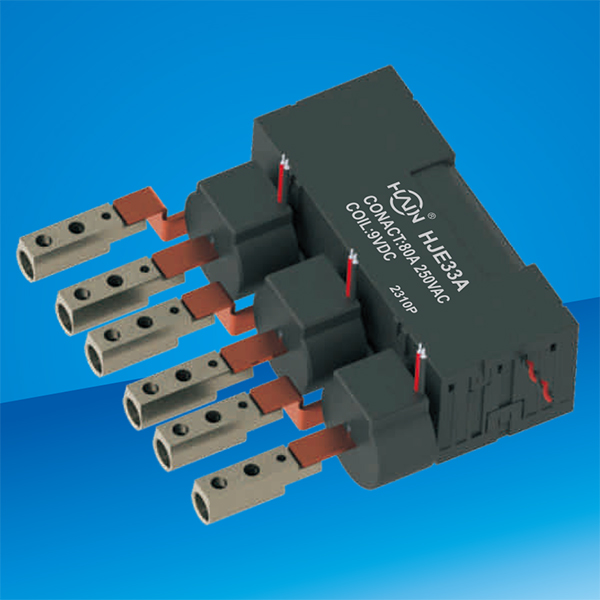

Feature Description
》 三相三组触点80A 触点转换能力
》适用国网三相电能表
》 负载引出方式：1进2出，3进4出，5进6出
》触点与线圈之间高介质耐压（4000VAC）
》 产品符合IEC-62055-31 UC2标准
》 外形尺寸：96×40×34mm
》可带一组辅助开关
》符合RoHS标准
| 触点参数 | |
| 触点负载（FLA） | 100A/250VAC |
| 触点形式 | 3A&3B |
| 触点材料 | 银氧化锡合金 |
| 初始接触电阻 | 2mΩ（0.1A@6vdc) |
| 最大转换电流 | 80A |
| 最大转换电压 | 250VAC |
| 最大转换功率 | 20000VA |
| 电气寿命 | 1X104OPS |
| 机械寿命 | 1X106OPS |
| 线圈功耗 | ||
| 线圈分类 | 脉冲宽度 | 功率 |
| 单线圈 | Min.50ms | 3W |
| 双线圈 | Min.50ms | 6W |
| 性能参数 | ||
| 绝缘电阻 | 1,000MΩ（at 500VDC) | |
| 介质耐压： | 触点与线圈间 | 4,000VAC 1 min |
| 断开触点间 | 2000VAC 1 min | |
| 闭合时间 | Max.20ms | |
| 断开时间 | Max.20ms | |
| 冲击稳定性 | 100m/s2 (10g) | |
| 冲击强度 | 1000m/s2 (100g) | |
| 环境温度 | ─40 ~ 85℃ | |
| 湿度 | 98%RH,+40℃ | |
| 抗震 | 10-55HZ,1.5mm 双振幅 | |
| 引出端方式 | 印制线路板式或快速连接 | |
| 单位重量 | 130g | |
| 封装形式 | 防尘罩型 | |
| 线圈参数 | |||||
| 额定线圈电压 | 6Vdc | 9Vdc | 12Vdc | 24Vdc | |
| 动作、复位电压VDC | ≤4.2 | ≤6.3 | ≤8.4 | ≤16.8 | |
| 线圈电阻（(Ω±10%)@23℃） | 单线圈电阻 | 12Ω | 27Ω | 48Ω | 192Ω |
| 双线圈电阻 | 2x6Ω | 2x13.5Ω | 2x24Ω | 2x96Ω | |

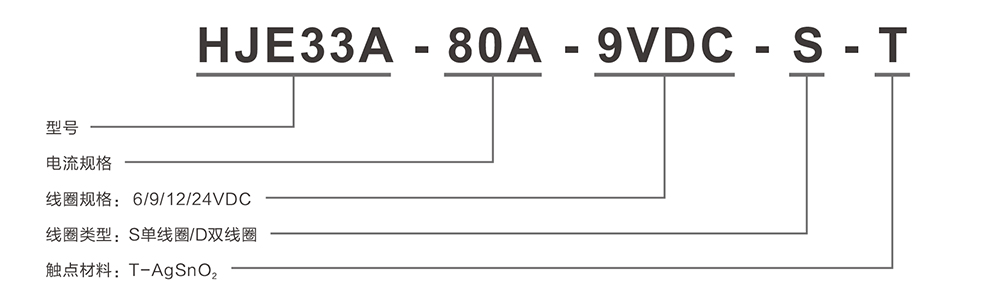

Ordering Information

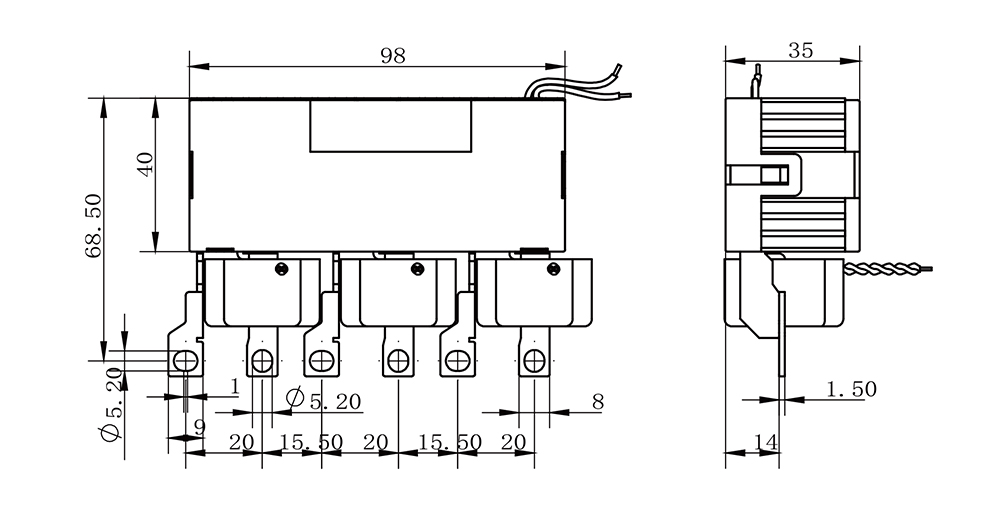

Dimensions (mm)
Precautions
1. All relays must be shipped in the closed state. The relay may become open during shipping or assembly, therefore, it is recommended to set the relay state to off through the power supply.
2. In order to keep the relay in the open or closed state, the coil voltage needs to reach the rated voltage, and the electronic pulse needs to be 5 times the working time to ensure the correct state conversion. Do not apply voltage to T1, T2, and T3 on the coil for more than one minute to prevent the coil from being damaged.
3. The relay has polarity distinction. If the polarity required by the user does not match the data, it should be specially mentioned when ordering.
4. Relays should be handled with care when entering the factory for inspection and use to prevent damage from affecting parameters. Products entering the factory for destructive inspection must be strictly differentiated from normal products and must not be installed and used.
