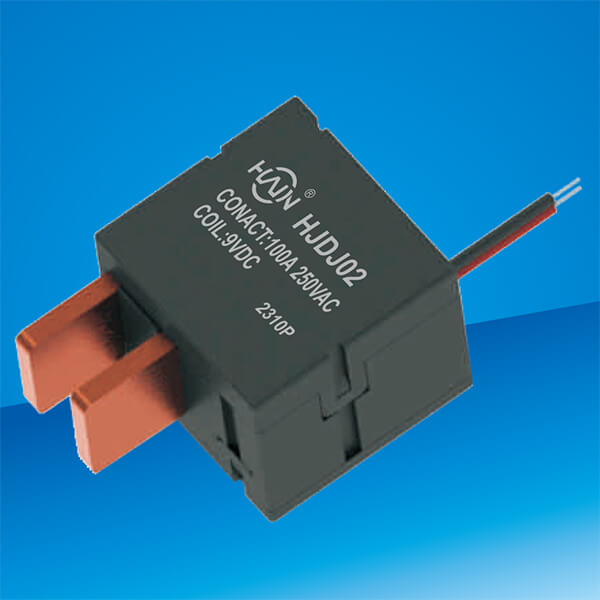

Feature Description
》100A switching capability
》Small size, good electrical contact stability
》Anti-magnetic field 500mt
》4KV dielectrics strength coil to contact
》IEC-62055-31 UC3 compliant
》Outline dimensions (23×22×20)mm
》RoHS compliant
| Contact Data | |
| Rated load(FLA) | 100A/250VAC |
| Contact form | 1A & 1B |
| Contact material | AgSnO2 |
| Initial contact resistance | 1.5mΩ（0.1A@6vdc） |
| Max.switching current | 100A |
| Max.switching voltage | 250VAC |
| Max.switching power | 25000VA |
| Electrical endurance | 1x104 ops |
| Mechanical endurance | 1x106 ops |
COIL DAT | ||
| Nominal coil voltage | 9-12Vdc | |
| Operating Voltage VDC | ≥8VDC | |
| Coil Resistance (Ω±10%)@23℃ | Single coil resistance | 13.7Ω |
CHARACTERISTICS | ||
| Insulation Resistance | 1000MΩ（at 500VDC) | |
Dielectric Strengt | Coil To Contact | 4000VAC 1 min |
| Across Open Contact | 2000VAC 1 min | |
| Operate Time | Max.25ms | |
| Release Time | Max.25ms | |
| Shock Resistance Functional | 100m/s 2(10g) | |
| Shock Resistance Destructive | 1000m/s 2(100g) | |
| Ambient Temperature | -40～85℃ | |
| Humidity | 98%RH, +40℃ | |
| Vibration Resistance | 10-55Hz, 1.5mm(DA) | |
| Termination | PCB | |
| Unit Weight | 38g | |
| Construction | Dust Protected | |
COIL POWER | ||
| Coil type | Pulse duration | Power consumption |
Motor internal resistance single coil | 100ms-200ms | Approx. 1.7W±10% |
Starting current needs 693mA±10%, 10ms needs 412mA±10%, 20ms needs 294mA±10%, 30ms needs 176mA±10%, 40ms needs 117mA±10%, 50ms needs 45mA±10% | ||

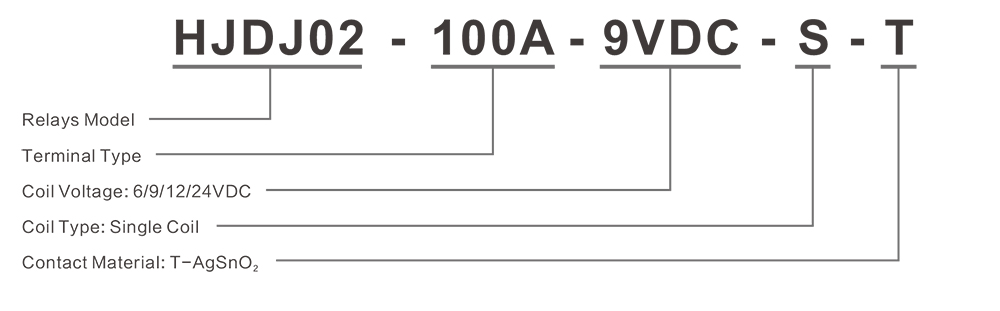

Ordering Information

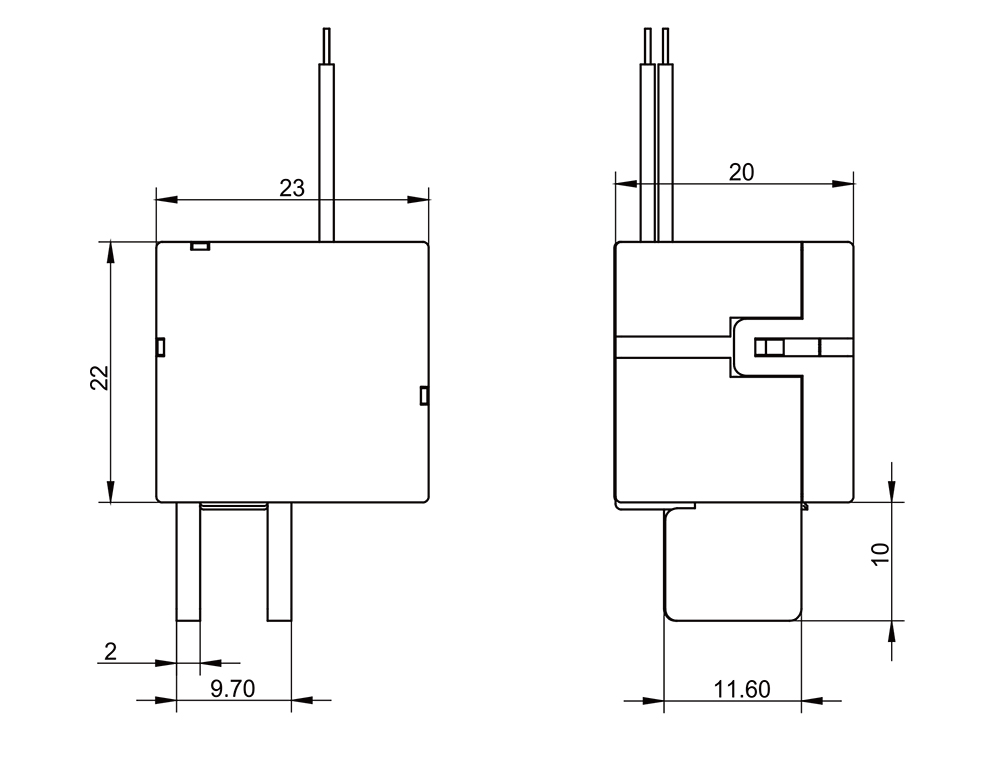

Dimensions (mm)
Precautions
1. All relays must be shipped in the closed state. The relay may become open during shipping or assembly, therefore, it is recommended to set the relay state to off through the power supply.
2. In order to keep the relay in the open or closed state, the coil voltage needs to reach the rated voltage, and the electronic pulse needs to be 5 times the working time to ensure the correct state conversion. Do not apply voltage to T1, T2, and T3 on the coil for more than one minute to prevent the coil from being damaged.
3. The relay has polarity distinction. If the polarity required by the user does not match the data, it should be specially mentioned when ordering.
4. Relays should be handled with care when entering the factory for inspection and use to prevent damage from affecting parameters. Products entering the factory for destructive inspection must be strictly differentiated from normal products and must not be installed and used.
